1+1 Card Optical Line Protection Switch OLP System For Realtime Power Monitoring

  • 1
  • 2
  • 3

Brand Name : Iseelink

Model Number : OSP3800-OLP

Certification : CE, ROHS

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 3-5days

Operating Wavelength Range : 1260nm~1650nm

Optical Power Range : -50 dBm ~+25dBm

Max Power Consumption : 5W

Optical Interface : LC/UPC

Contact Now

OLP 1+1 Card Optical Line Protection Switch for Real-time Power Monitoring



OLP optical protection card assists the wavelength division system in completing optical layer protection solutions such as optical line 1+1 protection and optical wavelength 1+1 protection. It can monitor the primary and backup routing optical paths in real-time. In the event that the fiber core is blocked or degraded in performance, it can implement the secure rearrangement automatically in the main and standby fiber core, so as to guarantee optical signals in the system line to recover quickly. OLP technology is to complete the routing switch operation in the optical layer. The optical layer protection has incomparable advantages over the protection of upper services, and it is the best solution to provide the user with uninterrupted communication.



Product Features:



  • Support automatic switching of primary and secondary routes
  • Support manual and automatic switching modes
  • Low switching time <30ms
  • Low insertion loss: <5.5dB
  • Support automatic return to the Primary
  • Support manual, automatic working mode settings
  • Support for switching threshold settings

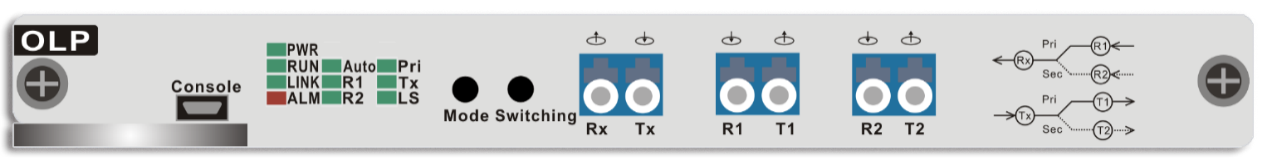

OLP 1:1 Card



1+1 Card Optical Line Protection Switch OLP System For Realtime Power Monitoring

1+1 Card Optical Line Protection Switch OLP System For Realtime Power Monitoring



OLP 1+1 Card



1+1 Card Optical Line Protection Switch OLP System For Realtime Power Monitoring



1+1 Card Optical Line Protection Switch OLP System For Realtime Power Monitoring



Product Application



  • Optical line automatic switching protection

  • Real-time power monitoring

  • Support automatic switching of primary and secondary routes



Product Specification



Function Note
working wavelength range 1260nm~1650nm
OLP TYPE OLP-1:1 OLP-1+1 OLP-1-1 OLP-BIDI
Switching time ＜35ms ＜15ms ＜15ms ＜15ms
Introduction loss Tx port ＜1.3dB ＜4dB ＜1.3dB ＜1.3dB
Rx port ＜1.3dB ＜1.2dB ＜1.3dB ＜1.3dB
  Rx port ＜1.2dB
Monitoring of optical power range -50 dBm ~+25dBm
Application scenes
  • Optical line 1+1 protection
  • Optical wavelength 1+1 protection
Network management function supports the OLP optical power real-time monitoring, active switch scheduling, performance management, routing management, and other management functions
Occupied slot number Support OSP3800 series chassis, occupy 1 slot,(0.5U)
Optical interface LC/UPC
Max power consumption 5W
MTBF ＞100000 hours

OSP3800 series including cards as below:

NMS management card 100G QSFP28 to CFP transponder 2xQSFP28 to CFP2 200G Muxponder
100G Muxponder:QSFP28 ↔4xSFP28 40G&100G OEO:6*QSFP28 SFP28 25G Quad transponder
SFP+ Multi-Rate Quad transponder Redundant Multi-Rate Dual transponder EDFA Optical Amplifiers
Bidi EDFA Optical Amplifiers 16ch DWDM MUX/DEMUX 40ch DWDM MUX/DEMUX(AAWG)
OLP Optical Line Protector DWDM Passive Optical Add/Drop Multiplexers /
